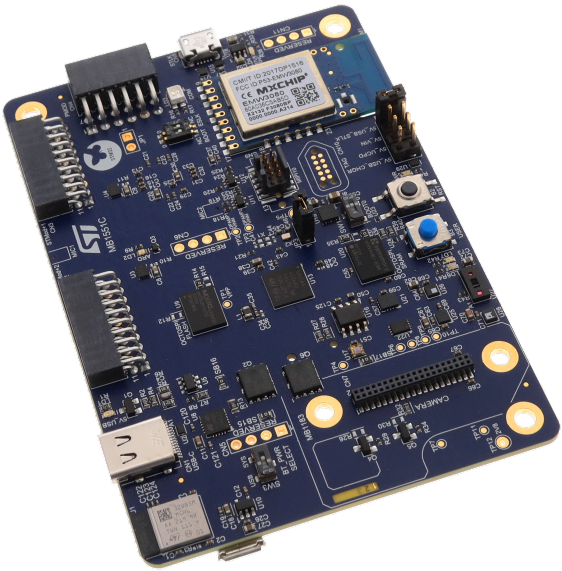

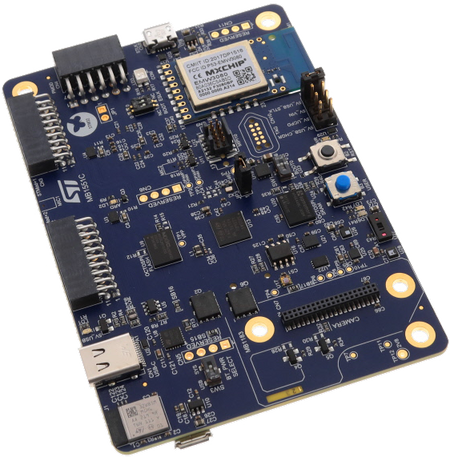

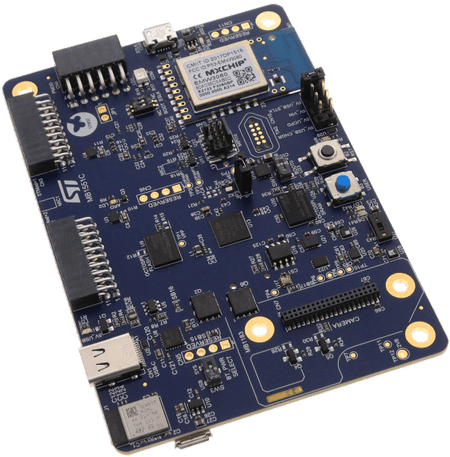

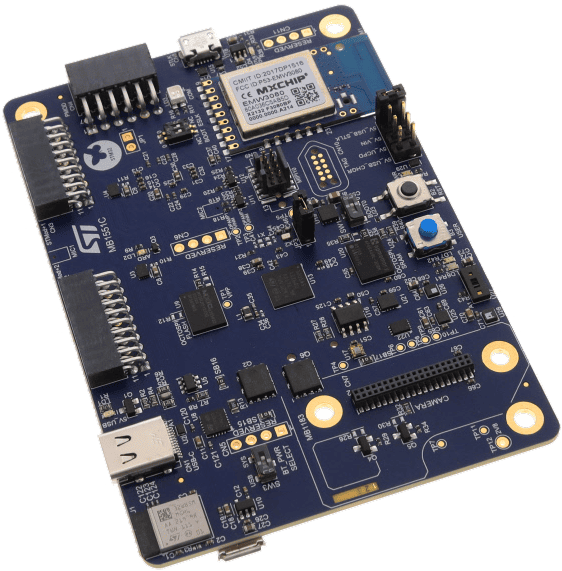

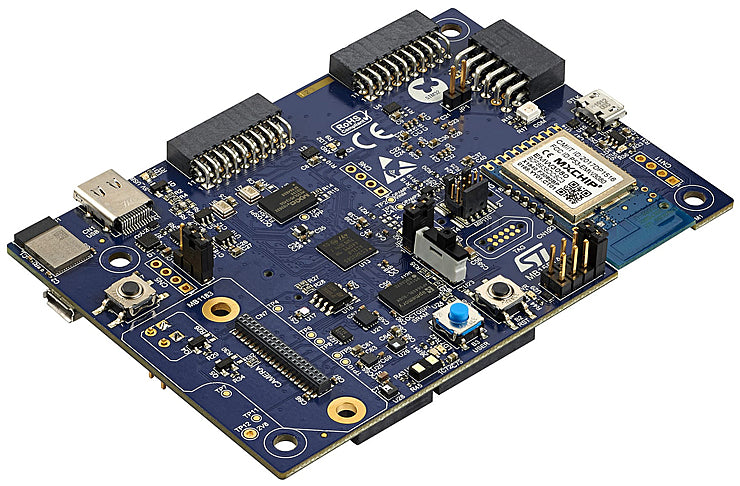

B-U585I-IOT02A

The B-U585I-IOT02A is a Discovery kit from STMicroelectronics designed for developing IoT (Internet of Things) applications. Here are some key features:

Microcontroller: Features the STM32U585AI microcontroller with an ARM Cortex-M33 core and ARM TrustZone for enhanced security.

Memory: Includes 2 MB of Flash memory and 786 KB of SRAM.

Connectivity: Equipped with Wi-Fi (802.11 b/g/n) and Bluetooth Low Energy (BLE) modules for wireless communication.

Sensors: Comes with a variety of sensors including digital microphones, temperature and humidity sensors, magnetometers, accelerometers, gyroscopes, pressure sensors, and time-of-flight sensors.

Expansion Options: Supports Arduino Uno V3, STMod+, and Pmod connectivity for easy expansion with various add-on boards.

Debugging: Includes an on-board STLINK-V3E debugger/programmer with USB re-enumeration capability for easy loading, debugging, and programming.

Power Supply: Flexible power-supply options including USB Type-C, USB connector, or external sources.

This Discovery kit is ideal for prototyping wearable or sensor applications in fields like fitness, metering, industrial, or medical, leveraging its ultra-low-power consumption and high security.
