APT23066

Base Cost (USD): 0

Import Duty (USD) @0%: 0

Freight (USD): 0

Total Cost (USD): 0

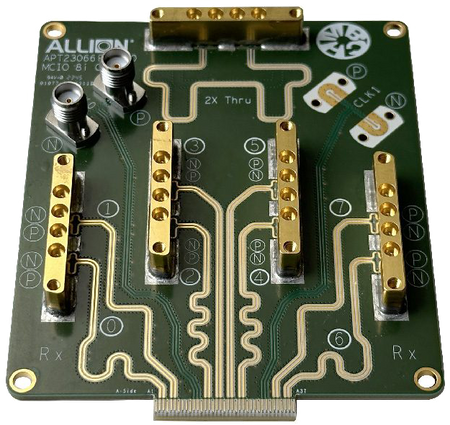

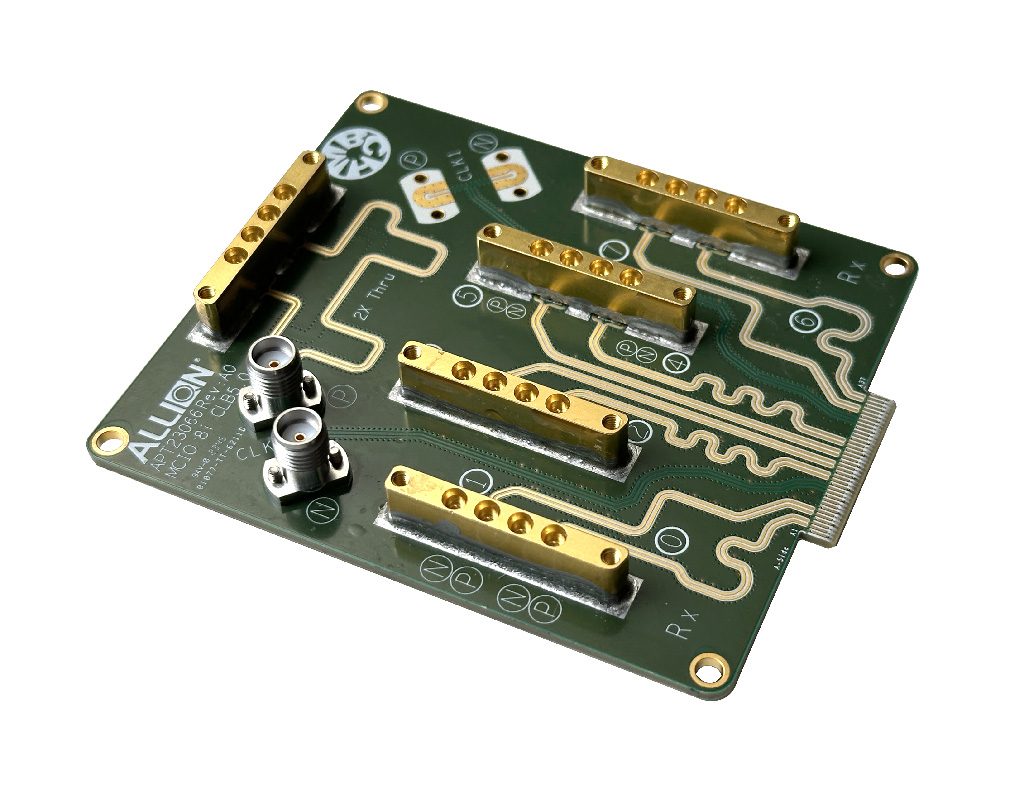

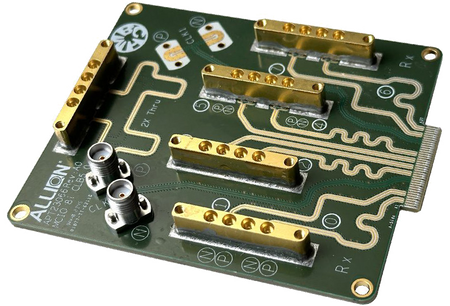

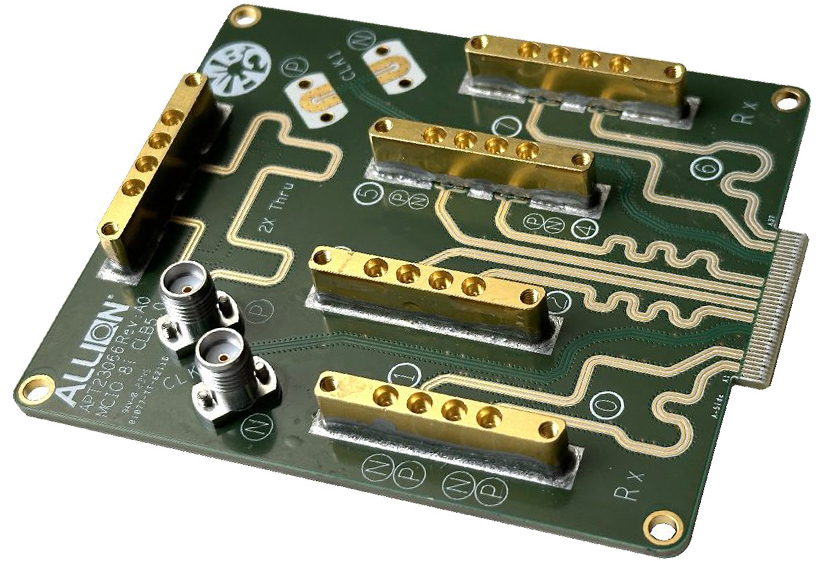

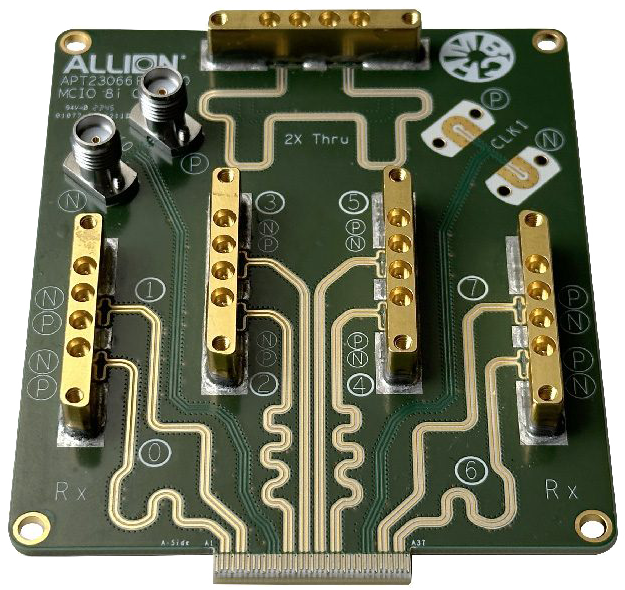

The APT23066 is a PCIe MCIO8i CLB5.0 Test Fixture from Allion Labs. Here are some key features:

Purpose: Designed for PCI Express Host Compliance Testing for Tx/Rx (Gen1-Gen5) and Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen5).

Connectors: Includes eight SMPM (Quad Ports) connectors for Tx/Rx lanes 0-7, two SMA connectors for reference clock, and one SMPM (Quad Ports) connector for 2X Thru Calibration.

Bandwidth: Supports up to 40GHz bandwidth.

Dimensions: Measures 69.85mm x 84.81mm.

This test fixture is ideal for validating the electrical performance of PCI Express interfaces in various systems, including servers, IPCs, notebooks, and desktops2.
